Quick Summary: Tesla Patent US 2026/0110320 A1
- Patent: US 2026/0110320 A1 — a complete re-engineering of the interior trim clip
- Problem solved: Traditional rigid plastic clips transmit vibrations directly to cabin panels — causing rattles, buzzes, and NVH
- Innovation: Two-material design — rigid glass-fiber-reinforced nylon core + soft thermoplastic elastomer (TPE) damping layer
- TPE function: Mushroom-shaped soft gasket absorbs high-frequency vibrations before they reach the interior panel
- Reusability: Engineered force calibration allows panel removal without destroying the clip — grommets stay anchored in the body
- Force specs: Grommet retention: 243 N; Pin removal: 152 N — panel pops off cleanly; grommet stays put
- Owner benefit: Quieter cabin + rattle-free aging + lower long-term service costs
Tesla's latest patent isn't about batteries or autonomous driving — it's about a trim clip. But this humble piece of plastic, reimagined with dual-material engineering and precision force calibration, could be one of the most impactful NVH improvements in the company's history. Here's the full technical breakdown of what Tesla invented, why it matters, and what it means for owners.
The Problem: Why Traditional Trim Clips Are an NVH Weak Point
| Failure Mode | How It Causes NVH | Why It's Worse in EVs |
|---|---|---|
| Rigid single-material design | Creates a direct, unyielding bridge between vibrating chassis and resonant interior panel — panel acts like a drum skin | No engine noise to mask it — every buzz and rattle is clearly audible |
| Clip loosening over time | Temperature cycles + micro-vibrations + service removal cause clips to lose grip — tiny gaps allow panels to rattle | EV cabin silence makes intermittent rattles especially noticeable and frustrating |
| Single-use design | Clips break during panel removal for service — replacement clips often fit less precisely, creating new rattle points | Post-service rattles are a common complaint across all vehicle types |
⚠️ The EV NVH Paradox: Electric vehicles eliminated engine noise — but in doing so, they unmasked every other sound source. Road rumble, wind whistle, suspension feedback, and interior panel resonance are now the primary acoustic challenges. The trim clip, once irrelevant, has become a critical NVH component.

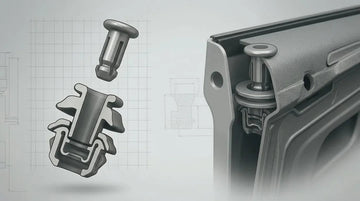

The Innovation: Tesla's Two-Material Dual-Function Design
| Component | Material | Function |
|---|---|---|
| Grommet | Glass-fiber-reinforced nylon (rigid) | Anchors into vehicle body sheet metal — solid, immovable foundation |
| Pin | Glass-fiber-reinforced nylon (rigid) | Passes through trim panel and locks into grommet — holds panel firmly in place |
| TPE damping layer | Thermoplastic elastomer (soft, rubber-like) | Overmolded onto nylon in mushroom shape — compressed when panel is clipped in; absorbs high-frequency vibrations before they reach the panel |
| TPE flared gasket | Thermoplastic elastomer (soft) | Wide flare spreads mechanical load over larger surface area — prevents concentrated stress points that cause buzzing and panel fatigue |
💡 The Core Principle: Rigid where strength is needed (nylon core — holds the panel securely). Soft where silence matters (TPE layer — absorbs vibrations before they reach the panel). Two materials, two personalities, one component. This is the first-principles approach applied to a part most automakers treat as a disposable commodity.
The Engineering of Reusability: Precision Force Calibration
| Action | Force Required | Purpose |
|---|---|---|
| Insert grommet into body panel | 31 N | Easy assembly-line installation |
| Remove grommet from body panel | 243 N | Massive retention — grommet stays anchored through years of driving and vibration |
| Insert pin into grommet | 7 N | Minimal force — easy panel installation and reinstallation |
| Remove pin from grommet | 152 N | Secure in operation; but less than grommet retention (243 N) — panel pops off cleanly without disturbing grommet |
💡 The Genius of the Force Hierarchy: Pin removal force (152 N) < Grommet retention force (243 N). This means a technician can apply enough force to pop the trim panel off — pins release cleanly — without ever dislodging the grommet from the body. The grommet and its TPE damping layer stay perfectly in place. Panel reinstalls exactly as it left the factory. No degradation. No new rattles. Likely refined using finite-element analysis (FEA) computer modeling.
Real-World Impact for Tesla Owners
| Benefit | How the Patent Delivers It |
|---|---|
| Quieter cabin immediately | Dozens of TPE-damped clips working together measurably lower the ambient noise floor — road rumble muted, panel buzz absorbed at source |
| Rattle-free aging | Robust anchoring + vibration damping prevents the gradual clip loosening that causes squeaks and rattles in aging vehicles |
| Post-service quality preserved | Reusable clips mean panel reinstallation is factory-precise — no new rattles introduced after accessing wiring, speakers, or window mechanisms |
| Lower maintenance costs | Workshops don't need to stock disposable replacement clips; technicians work faster and more confidently |
| Stronger resale value | A 5-year-old Tesla with this system should feel as solid and rattle-free as delivery day — higher perceived quality over the vehicle's lifetime |
A Microcosm of Tesla's Engineering Philosophy
| Tesla Innovation | What It Reinvented | Same Pattern |
|---|---|---|
| Octovalve thermal system | Consolidated complex thermal plumbing into a single efficient unit | ✓ First-principles redesign of a commodity component |
| Gigacasting | Replaced hundreds of stamped/welded parts with single-piece die castings | ✓ First-principles redesign of a commodity component |
| NVH trim clip (this patent) | Transformed a disposable fastener into an active vibration-damping system | ✓ First-principles redesign of a commodity component |
Conclusion
📌 Key Takeaways
- Patent: US 2026/0110320 A1 — dual-material interior trim clip with integrated NVH damping
- Two materials: Rigid glass-fiber-reinforced nylon (strength) + soft TPE (vibration absorption)
- TPE function: Mushroom-shaped gasket compressed when panel clips in — absorbs high-frequency vibrations at source
- Force calibration: 243 N grommet retention vs. 152 N pin removal — panel pops off cleanly; grommet stays anchored
- Reusability: Clips survive repeated service cycles with no degradation in fit or NVH performance
- Owner impact: Quieter cabin, rattle-free aging, factory-precise post-service reinstallation, lower maintenance costs
- Philosophy: Same first-principles approach as Octovalve and Gigacasting — no component too small to reinvent
In the pursuit of perfection, Tesla has turned its attention to one of the smallest, most overlooked components in the vehicle. A trim clip. But this patent reveals that even the humblest part can be reimagined from first principles — and when dozens of them work together, the result is a cabin that doesn't just feel quiet, it feels engineered. Future Tesla owners may never know why their car feels so serene. The answer will be hidden behind the panels, in a collection of small, clever clips doing their job in silence.
